Chip-level Connections#

The chip-level connections module in OpenROAD (pad) is based on the open-source tool ICeWall. In this utility, either place an IO ring around the boundary of the chip and connect with either wirebond pads or a bump array.

Commands#

Note

  • Parameters in square brackets [-param param] are optional.

  • Parameters without square brackets -param2 param2 are required.

Placing Terminals#

In the case where the bond pads are integrated into the padcell, the IO terminals need to be placed. To place a terminals on the padring

place_io_terminals
    -allow_non_top_layer
    inst_pins

Options#

Switch Name

Description

-allow_non_top_layer

Allow the terminal to be placed below the top layer.

inst_pins

Instance pins to place the terminals on.

Examples#

place_io_terminals u_*/PAD
place_io_terminals u_*/VDD

Defining a Bump Array#

To define a bump array.

make_io_bump_array
    -bump master
    -origin {x y}
    -rows rows
    -columns columns
    -pitch {x y}
    [-prefix prefix]

Options#

Switch Name

Description

-bump

Name of the bump master.

-origin

Origin of the array.

-rows

Number of rows to create.

-columns

Number of columns to create.

-pitch

Pitch of the array.

-prefix

Name prefix for the bump array. The default value is BUMP_.

Example usage:

make_io_bump_array -bump BUMP -origin "200 200" -rows 14 -columns 14 -pitch "200 200"

Removing Entire Bump Array#

To remove a bump array.

remove_io_bump_array -bump master

Options#

Switch Name

Description

-bump

Name of the bump master.

Example usage:

remove_io_bump_array -bump BUMP

Removing a Single Bump Instance#

To remove a single bump instance.

remove_io_bump instance_name

Options#

Switch Name

Description

instance_name

Name of the bump.

Assigning a Net to a Bump#

To assign a net to a bump.

assign_io_bump
    -net net
    [-terminal iterm]
    [-dont_route]
    instance

Options#

Switch Name

Description

-net

Net to connect to.

-terminal

Instance terminal to route to.

-dont_route

Flag to indicate that this bump should not be routed, only perform assignment.

instance

Name of the bump.

Example usage:

assign_io_bump -net p_ddr_addr_9_o BUMP_6_0
assign_io_bump -net p_ddr_addr_8_o BUMP_6_2
assign_io_bump -net DVSS BUMP_6_4
assign_io_bump -net DVDD BUMP_7_3
assign_io_bump -net DVDD -terminal u_dvdd/DVDD BUMP_8_3
assign_io_bump -net p_ddr_addr_7_o BUMP_7_1
assign_io_bump -net p_ddr_addr_6_o BUMP_7_0

Define IO Rows#

Define an IO site for the pads to be placed into.

make_io_sites
    -horizontal_site site
    -vertical_site site
    -corner_site site
    -offset offset
    [-rotation_horizontal rotation]
    [-rotation_vertical rotation]
    [-rotation_corner rotation]
    [-ring_index index]

Options#

Switch Name

Description

-horizontal_site

Name of the site for the horizontal pads (east and west).

-vertical_site

Name of the site for the vertical pads (north and south).

-corner_site

Name of the site for the corner cells.

-offset

Offset from the die edge to place the rows.

-rotation_horizontal

Rotation to apply to the horizontal sites to ensure pads are placed correctly. The default value is R0.

-rotation_vertical

Rotation to apply to the vertical sites to ensure pads are placed correctly. The default value is R0.

-rotation_corner

Rotation to apply to the corner sites to ensure pads are placed correctly. The default value is R0.

-ring_index

Used to specify the index of the ring in case of multiple rings.

Example usage:

make_io_sites -horizontal_site IOSITE_H -vertical_site IOSITE_V -corner_site IOSITE_C -offset 35
make_io_sites -horizontal_site IOSITE_H -vertical_site IOSITE_V -corner_site IOSITE_C -offset 35 -rotation_horizontal R180

Remove IO Rows#

When the padring is complete, the following command can remove the IO rows to avoid causing confusion with the other tools.

remove_io_rows

Placing Corners#

To place the corner cells

place_corners
    master
    [-ring_index index]

Options#

Switch Name

Description

master

Name of the master for the corners.

-ring_index

Used to specify the index of the ring in case of multiple rings.

Example usage:

place_corners sky130_fd_io__corner_bus_overlay

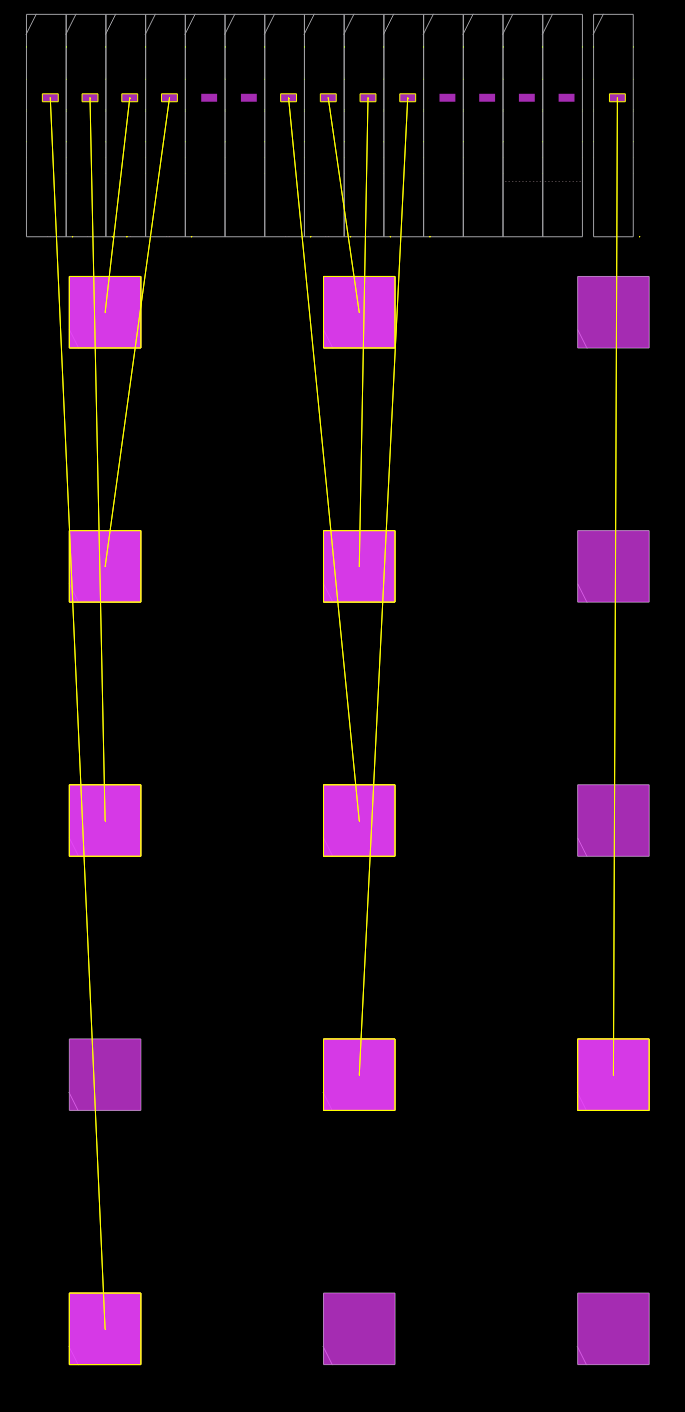

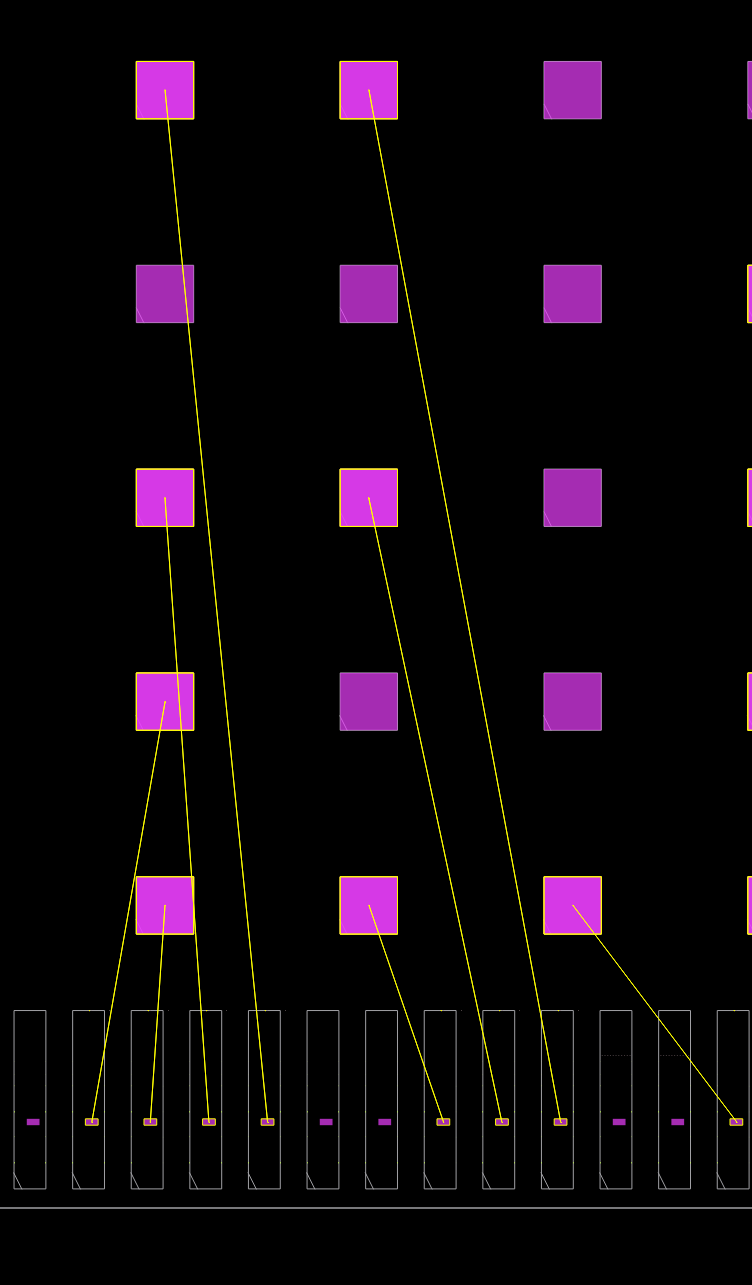

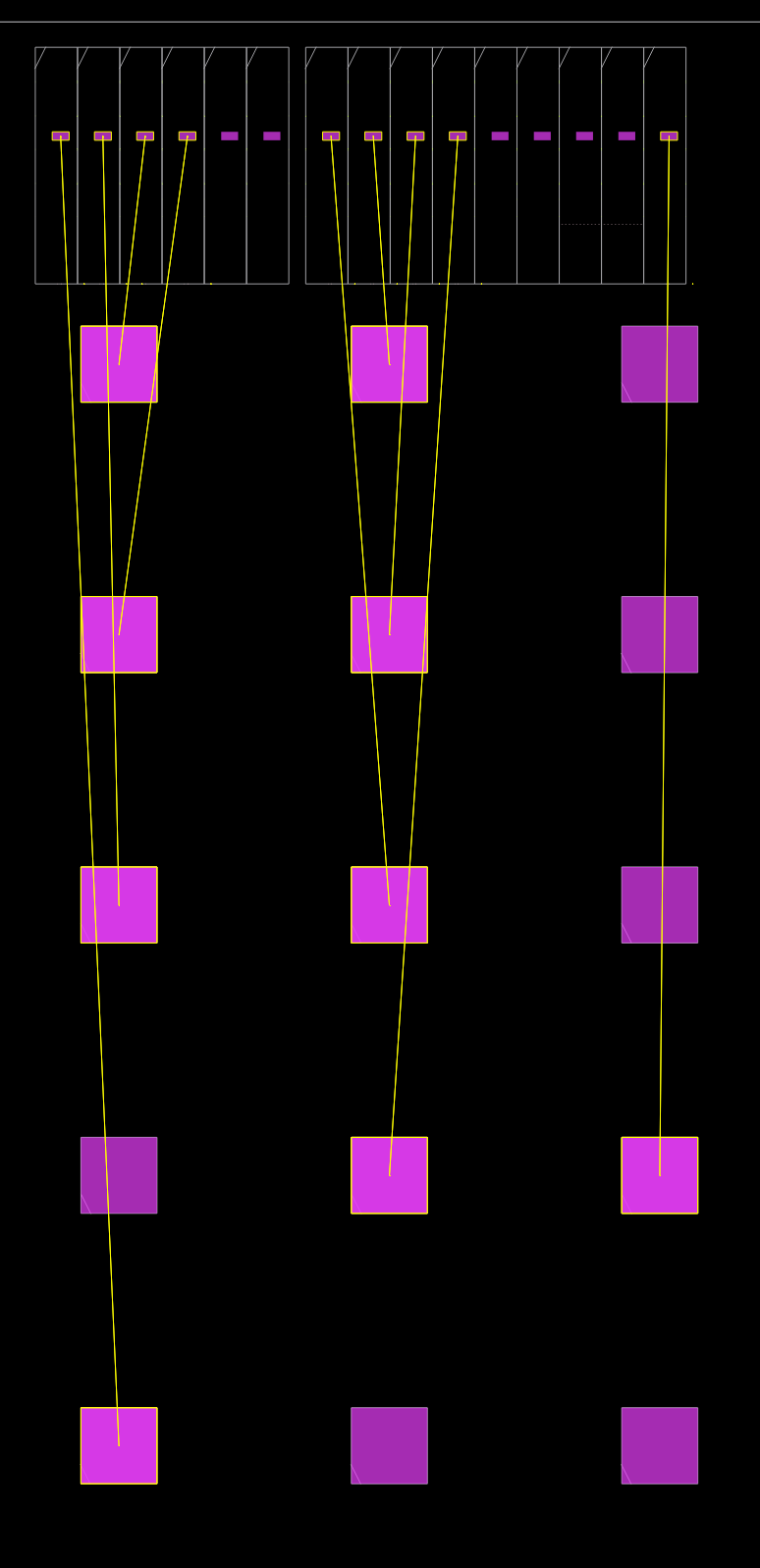

Placing Pads#

To place a pad into the pad ring.

place_pad
    -row row_name
    -location offset
    -mirror
    [-master master]
    name

Options#

Switch Name

Description

-row

Name of the row to place the pad into, examples include: IO_NORTH, IO_SOUTH, IO_WEST, IO_EAST, IO_NORTH_0, IO_NORTH_1.

-location

Offset from the bottom left chip edge to place the pad at.

-mirror

Specifies if the pad should be mirrored.

-master

Name of the instance master if the instance needs to be created.

name

Name of the instance.

Example usage:

place_pad -row IO_SOUTH -location 280.0 {u_clk.u_in}
place_pad -row IO_SOUTH -location 360.0 -mirror {u_reset.u_in}
place_pad -master sky130_fd_io__top_ground_hvc_wpad -row IO_SOUTH -location 439.5 {u_vzz_0}
place_pad -master sky130_fd_io__top_power_hvc_wpad -row IO_SOUTH -location 517.5 {u_v18_0}

Placing IO Filler Cells#

To place the IO filler cells.

place_io_fill
    -row row_name
    [-permit_overlaps masters]
    masters

Options#

Switch Name

Description

-row

Name of the row to place the pad into, examples include: IO_NORTH, IO_SOUTH, IO_WEST, IO_EAST, IO_NORTH_0, IO_NORTH_1.

-permit_overlaps

Names of the masters for the IO filler cells that allow for overlapping.

masters

Names of the masters for the IO filler cells.

Example usage:

place_io_fill -row IO_NORTH s8iom0s8_com_bus_slice_10um s8iom0s8_com_bus_slice_5um s8iom0s8_com_bus_slice_1um
place_io_fill -row IO_SOUTH s8iom0s8_com_bus_slice_10um s8iom0s8_com_bus_slice_5um s8iom0s8_com_bus_slice_1um
place_io_fill -row IO_WEST s8iom0s8_com_bus_slice_10um s8iom0s8_com_bus_slice_5um s8iom0s8_com_bus_slice_1um
place_io_fill -row IO_EAST s8iom0s8_com_bus_slice_10um s8iom0s8_com_bus_slice_5um s8iom0s8_com_bus_slice_1um

Connecting Ring Signals#

Once the ring is complete, use the following command to connect the ring signals.

connect_by_abutment

Placing Wirebond Pads#

To place the wirebond pads over the IO cells.

place_bondpad
    -bond master
    [-offset {x y}]
    [-rotation rotation]
    io_instances

Options#

Switch Name

Description

-bond

Name of the bondpad master.

-offset

Offset to place the bondpad at with respect to the io instance.

-rotation

Rotation of the bondpad.

io_instances

Names of the instances to add bond pads to.

Example usage:

place_bondpad -bond PAD IO_*

Creating False IO Sites#

If the library does not contain sites for the IO cells, the following command can be used to add them. This should not be used unless the sites are not in the library.

make_fake_io_site
    -name name
    -width width
    -height height

Options#

Switch Name

Description

-name

Name of the site.

-width

Width of the site (in microns).

-height

Height of the site (in microns).

Example usage:

make_fake_io_site -name IO_HSITE -width 1 -height 204
make_fake_io_site -name IO_VSITE -width 1 -height 200
make_fake_io_site -name IO_CSITE -width 200 -height 204

Redistribution Layer Routing#

To route the RDL for the bump arrays.

rdl_route
    -layer layer
    [-bump_via access_via]
    [-pad_via access_via]
    [-width width]
    [-spacing spacing]
    [-turn_penalty penalty]
    [-allow45]
    nets

Options#

Switch Name

Description

-layer

Layer to route on.

-bump_via

Via to use to to connect the bump to the routing layer.

-pad_via

Via to use to to connect the pad cell to the routing layer.

-width

Width of the routing. Defaults to minimum width for each respective layer.

-spacing

Spacing of the routing. Defaults to minimum spacing for each respective layer.

-turn_penalty

Scaling factor to apply to discurage turning to allow for straighter routes. The default value is 2.0, and the allowed values are floats.

-allow45

Specifies that 45 degree routing is permitted.

nets

Nets to route.

Useful Developer Commands#

If you are a developer, you might find these useful. More details can be found in the source file or the swig file.

Command Name

Description

find_site

Find site given site name.

find_master

Find master given master name.

find_instance

Find instance given instance name.

find_net

Find net given net name.

assert_required

Assert argument that is required for cmd

connect_iterm

Connect instance terminals. Required inputs are: inst_name, iterm_name, net_name.

convert_tcl

These functions read from $ICeWall::library parameters to generate a standalone Tcl script.

Example Scripts#

Example scripts for running ICeWall functions can be found in ./test.

./test/assign_bumps.tcl
./test/bump_array_make.tcl
./test/bump_array_remove.tcl
./test/bump_array_remove_single.tcl
./test/connect_by_abutment.tcl
./test/make_io_sites.tcl
./test/place_bondpad.tcl
./test/place_bondpad_stagger.tcl
./test/place_pad.tcl
./test/rdl_route.tcl
./test/rdl_route_45.tcl
./test/rdl_route_assignments.tcl

Regression Tests#

There are a set of regression tests in ./test. For more information, refer to this section.

Simply run the following script:

./test/regression

Limitations#

FAQs#

Check out GitHub discussion about this tool.

License#

BSD 3-Clause License. See LICENSE file.
